With BluSystems from Speek, you can choose from four types of vacuum unit with different characteristics and in various sizes and find the best solution for your needs. lf you want to use existing vacuum tanks in your calibration table, for example, the decentralized BluVacD vacuum unit is also available. The Blue Systems are vacuum systems designed for profile extrusion, but can also used in other applications.
Energy saving with BluSystems
The enormous energy saving with BluSystems is achieved by not adding leakage air. lf smaller suction volumes or a lower vacuum is required after the profile has been calibrated, an internal control automatically reduces the speed of the electric motors, thereby lowering both the vacuum generation and the electrical power consumption. This demand-based vacuum generation saves large amounts of energy during the production process, which can run over several days in some cases.
A second energy-saving effect is also achieved with the reduced operating water cooling requirements, because, at reduced speeds, the vacuum pumps also introduce less energy into the operating water.

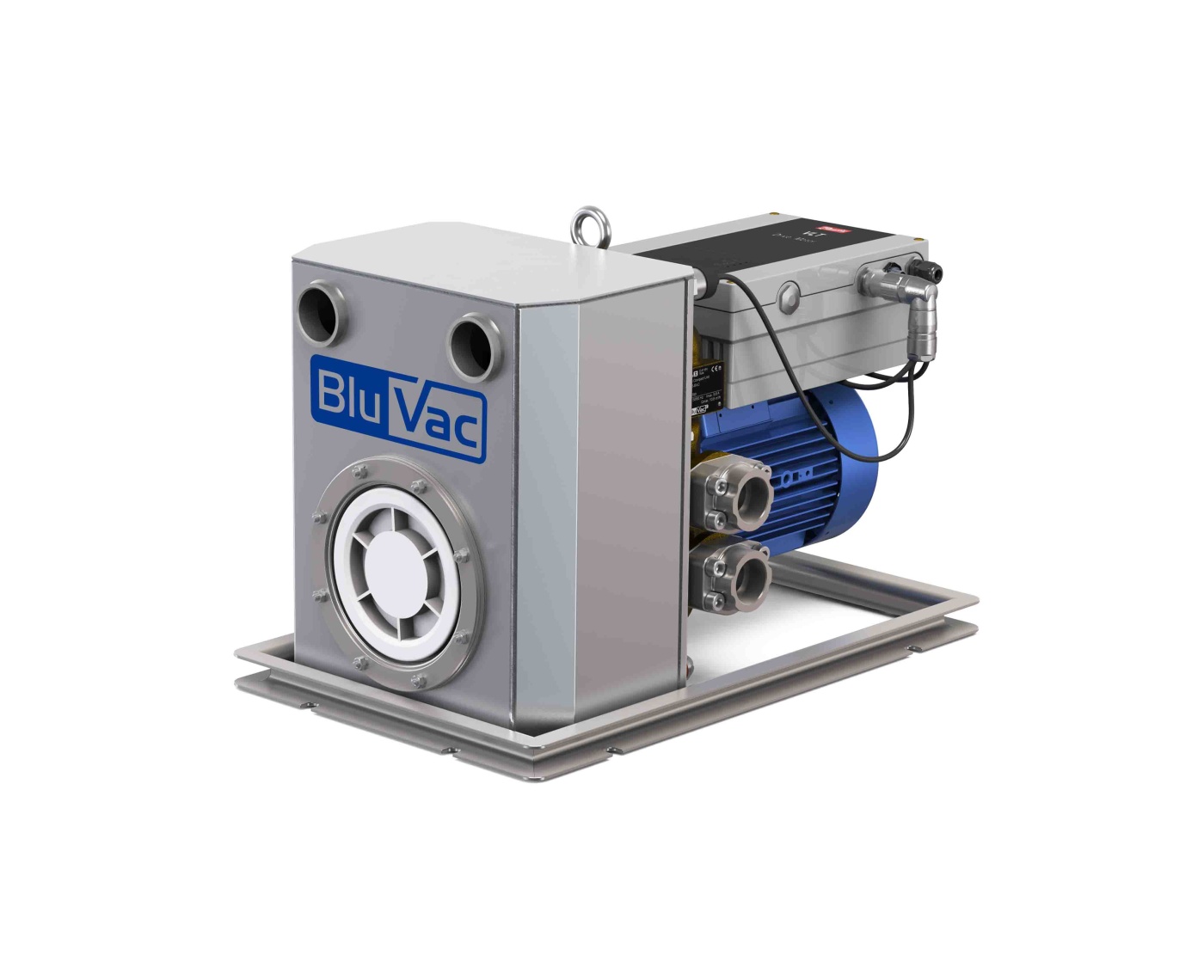

The BluVac Compact pumps are 2nd generation vacuum pumps that have been further developed. The systems are much more compact and robust, but have a comparable performance to the 1st generation pumps. This type of pump is very suitable for use in the extraction of water-gas mixtures. The pumps are standard equipped with a water reservoir, which makes it possible to suck in large amounts of water from the process. Currently there are 2 models available, the VI-55-BVC with a capacity of 60 m3/h and the VI-130-BVC with a capacity of approximately 130 m3/h. .

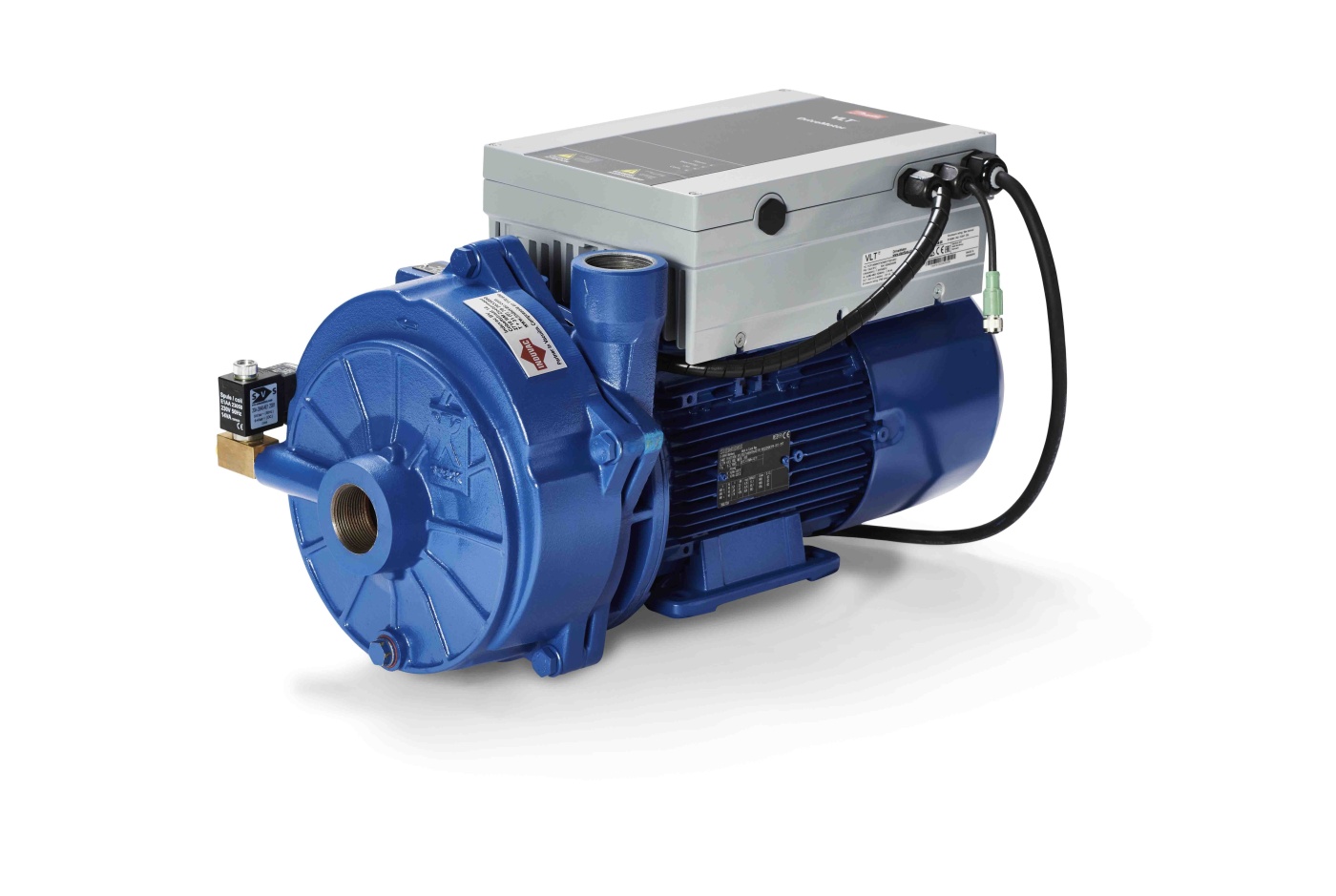

The BluLine VN vacuum systems consist of a single stage VN liquid ring vacuum pump with frequency converter and instrumentation to make the whole functional. The BluLine VN units are very suitable for use in extrusion processes where a lot of water comes along with the sucked air. The BluLine is available in 2 sizes: The VN-95-BL with a capacity of 115 m3/h and the VN-125-BL with a capacity of 150 m3/h.

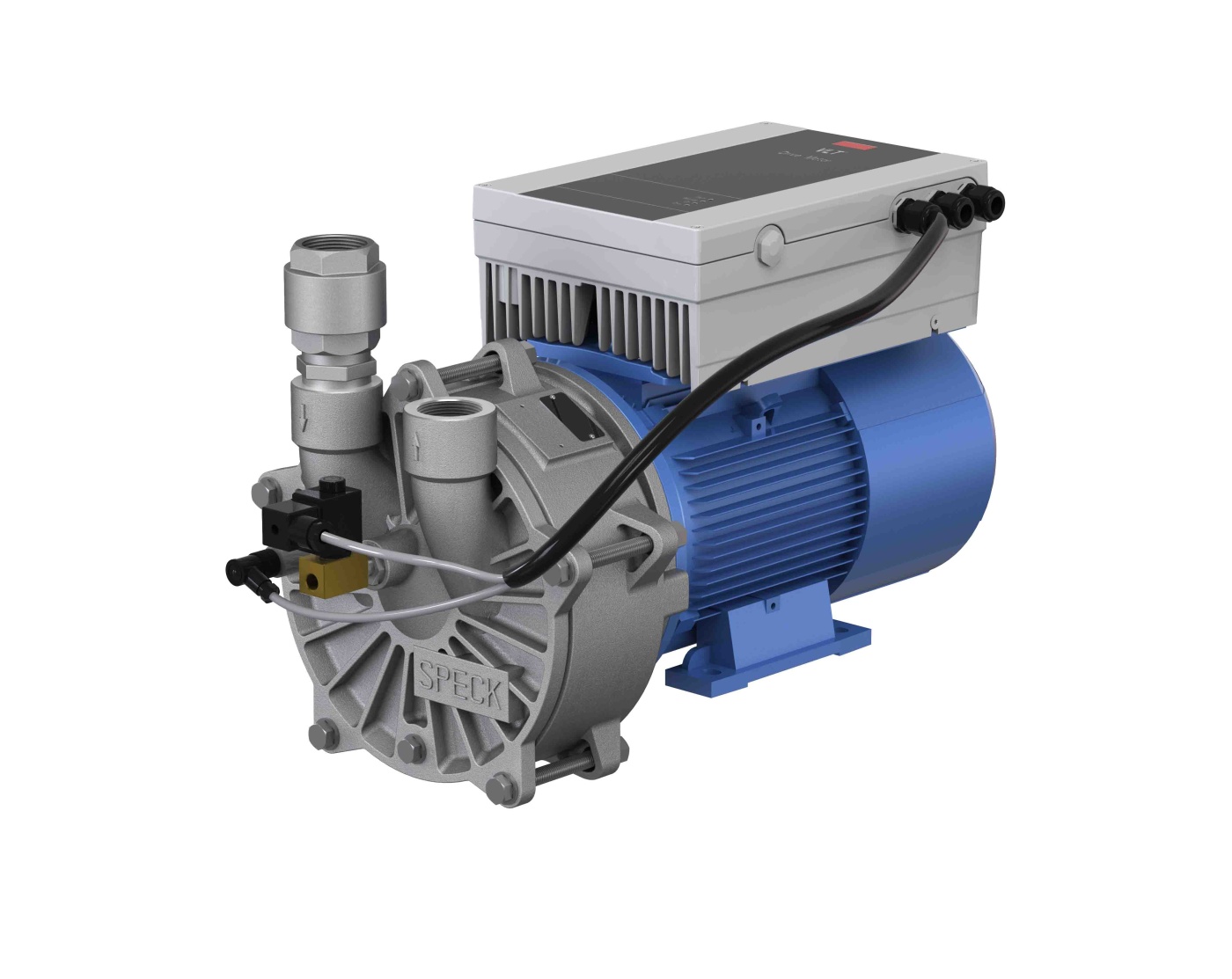

TThe BluLine VG vacuum systems consist of a single-stage VG liquid ring vacuum pump with frequency converter and instrumentation to make it fully functional. The BluLine VG units are suitable for use in extraction processes where little or no water comes along with the sucked air. The design of the VG series is maintained, so the system requires virtually no maintenance. The BluLine VG is available in 2 capacities: The VN-95-BL with a capacity of 115 m3/hour and the VN-125-BL with a capacity of 150 m3/hour.

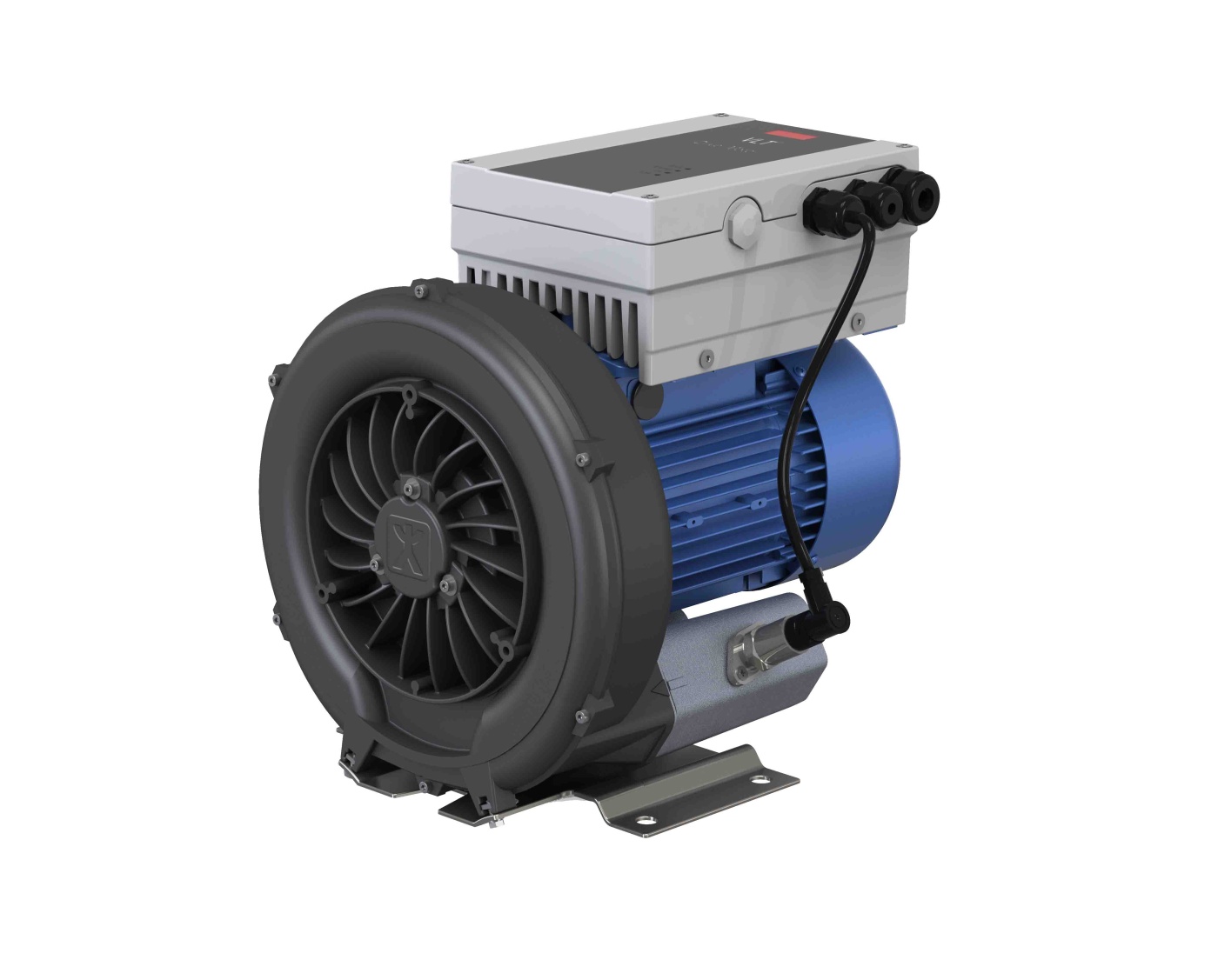

he BluLine VB vacuum systems consist of a specially coated side channel blower included frequency drive and instrumentation to make the whole functional. The BluLine VB units are suitable for use in extraction processes where only air and vapor is drawn in. The BluLine VB is available in 3 sizes: The VB-140-BL with a capacity of 170 m3/h, the VB-210-BL with a capacity of 255 m3/h and the VB-415-BL with a capacity of 500 m3/hr.
